Blueprints Set 2

Blueprints Set 2

$50.00
This is your chance to get to see and understand the technical marvel that is the Battleship North Carolina by viewing the ship's blueprints. The blueprints are on a special USB. Each set includes 8 plans. SET B – GENERAL ARRANGEMENT 8 drawings Navy Yard, New York USS NORTH CAROLINA...
-
+

Out of stock

Add to wishlist

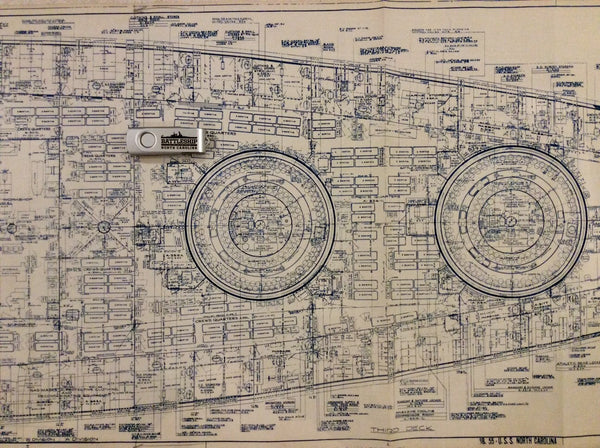

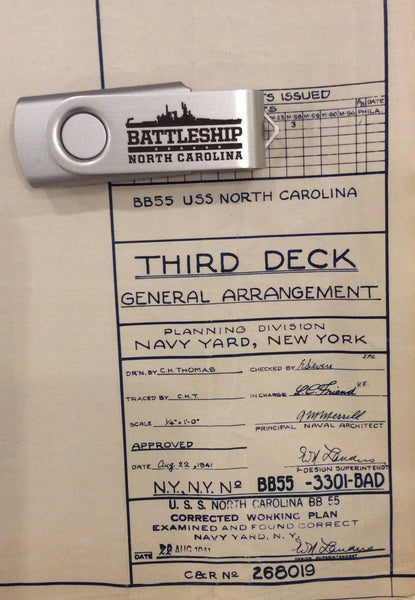

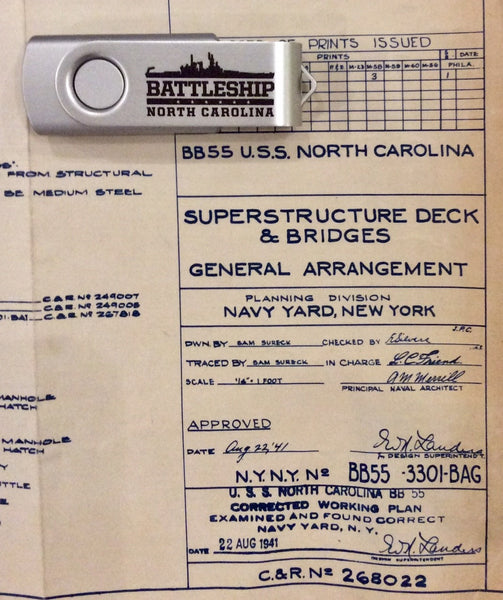

This is your chance to get to see and understand the technical marvel that is the Battleship North Carolina by viewing the ship's blueprints. The blueprints are on a special USB. Each set includes 8 plans. SET B – GENERAL ARRANGEMENT 8 drawings Navy Yard, New York USS NORTH CAROLINA – Battleship – No. 55 Corrected Working Plans, August 1941 Scale: 1/4 inches = 1 foot unless noted otherwise Scan Resolution: 300 dpi jpeg Blue lettering on white background, BNC Logo in corner Superstructure Deck & Bridges (scale: 1/4 inches = 1 foot) Main & Half Deck ((scale: 1/4 inches = 1 foot) Second Deck (scale: 1/4 inches = 1 foot) Third Deck (scale: 1/4 inches = 1 foot) First Platform (scale: 1/4 inches = 1 foot) Second Platform (scale: 1/4 inches = 1 foot) Outboard Fittings Profile (scale: 1/8 inches = 1 foot) Inboard Profile – from the Booklet of General Plans (scale: 1/6 inches = 1 foot)
